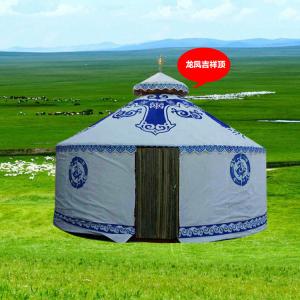

Outdoor Steel Frame Dome Yurt Tent With Wood Door And Floor
Roof material:
The top bamboo pole is used perennial solid bamboo. As artwork, it has several steps as following: the steam boiling, worm-preventing and mold-proofing steaming treatment, and outside varnish.
Frame materials:
Lattice wall frames are made by steel and bamboo trips are made by the bottom of old bamboo which is also very strong and thick and has the same process as the top bamboo pole.
Our yurts are composed by wall deepings / connecting fittings / stay bars / slippers /clearstory/ door window and so on. The covers include inner decorated cloth, warm felt, waterproof canvas and external decorated cloth, which is mainly white with some paintings in national features, so that it can be achieved waterproof, heat preservation, wind resistance. Our yurts can bear the weight of about 200 kg, achieve wind-resistant grade 8-10, and be used as long as more than 15 years.
Ordinary yurt
1:wrap cloth:three layer
Outside layer:white small silicone canvas or white thick Oxford cloth
Middle layer:thicker heat preservation needle-punched cotton
Inside layer:taffeta or Oxford cloth,various colors
2:Bracket:100% wood frame or make up of circular galvanized steel pipe, flat iron, galvanized steel and other components
3:Structure: frame structure, high frequency welding, plug-in composition, which Φ3 m -8 m yurts, reasonable frame, no square steel
3: Performance: waterproof, snow, warm, sunscreen, easy to use
4: Warranty: two to three years
5: Color:white, red, yellow, camouflage, military green
| Mongolia YurtSpecs(sqm) | Diameter
(m) | Side
height (m) | Top
height(m) | Forecast
Weight(kg) | Forecast
Volume(cbm) | Ridge
height (m) |
| 12 | 3.9 | 1.7 | 2.8 | 200 | 2 | steel and bamboo |
| 15 | 4.44 | 1.7 | 2.8 | 250 | 2.5 | steel bamboo |
| 21 | 5.12 | 1.7 | 3 | 280 | 3 | steel and bamboo |
| 31 | 6.23 | 1.7 | 3.1 | 400 | 3.5 | steel and bamboo |
| 52 | 7.9 | 1.8 | 4 | 600 | 4.5 | steel and bamboo |
| 63 | 9 | 1.8 | 7 | 1450 | 9 | steel and bamboo |
| 78 | 10 | 1.8 | 7 | 2000 | 11 | steel and bamboo |
